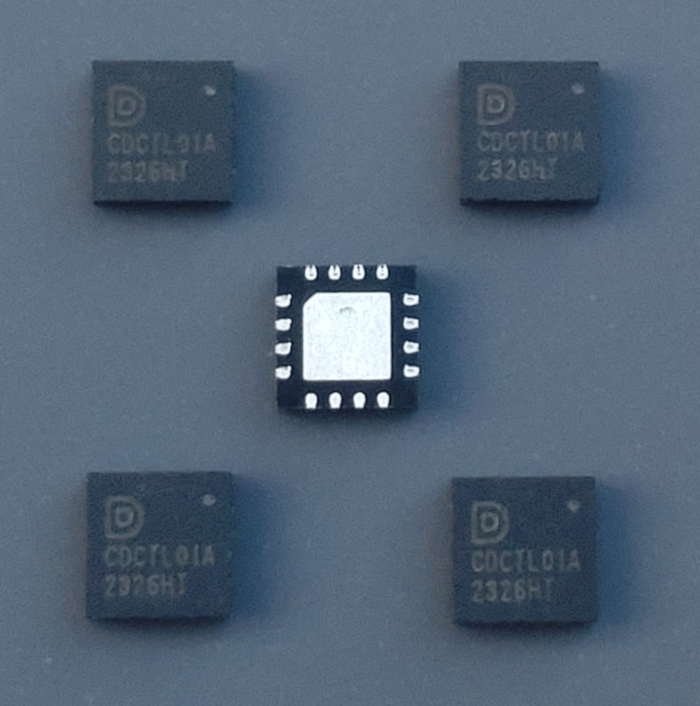

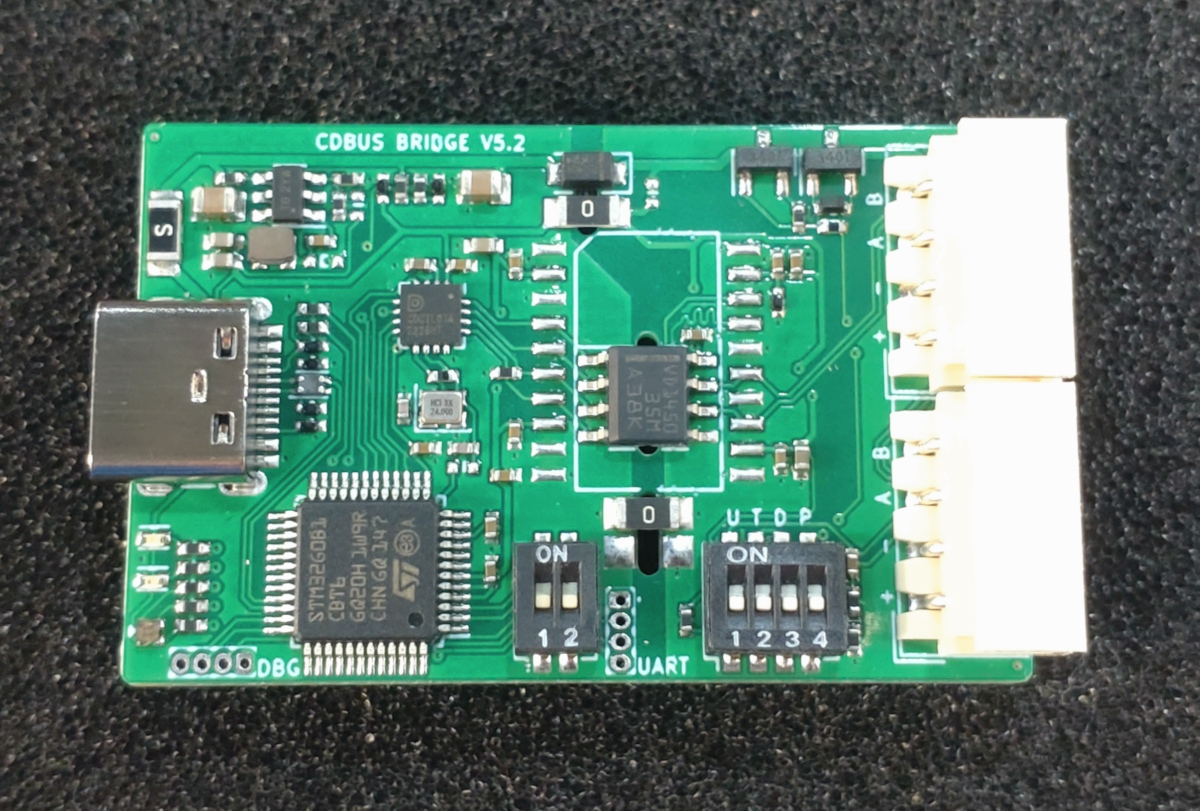

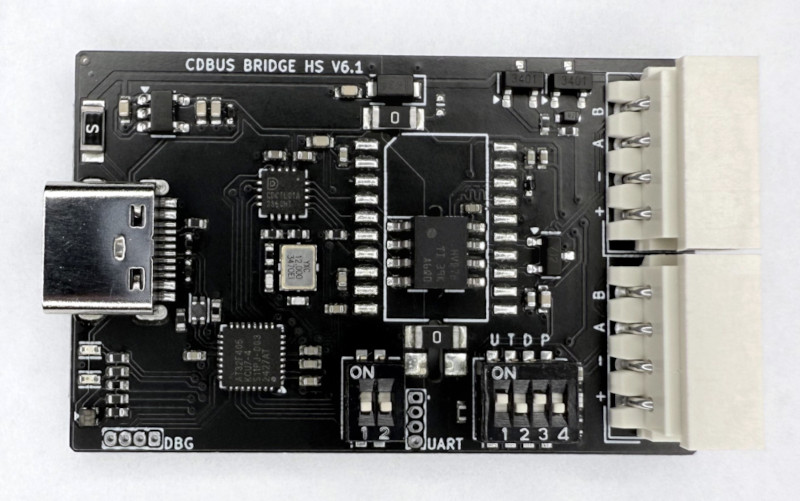

CDCTL01A is a dedicated communication controller ASIC running the CDBUS protocol over RS-485. It handles multi-master, non-destructive bus arbitration entirely in hardware, automatically packing, unpacking, verifying and filtering frames so your MCU stays free. Connect it through SPI and talk to the bus with simple register reads and writes.

High Speed

50Mbps maximum UART baudrate.

50MHz maximum SPI clock.

Small package: QFN16 3x3mm.

3.3V (±10%) single power supply.

Operating temperature range: -40 ~ 125 °C.

Crystal oscillator or external clock input.

4-wire or 3-wire SPI.

5V tolerant RI input.

Reference circuit:
